TOS1200泄漏電流測試儀（用于校準耐壓機電流）基本參數：
產地: 日本廠商: 日本菊水 KIKUSUI

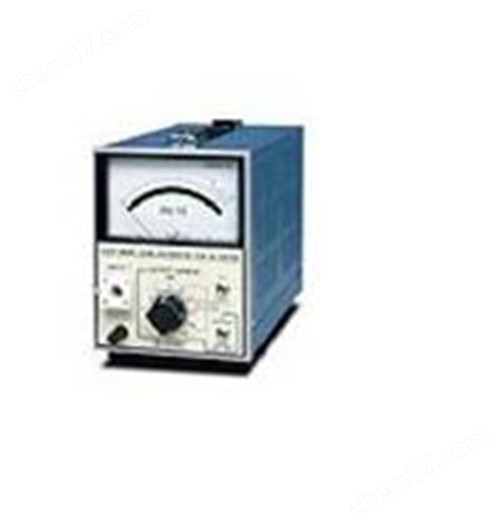

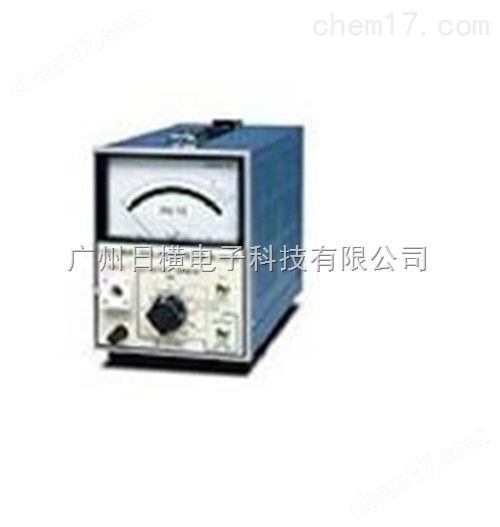

TOS1200泄漏電流測試儀日本菊水KIKUSUI

購買須知：

1.請您先確定產品的具體型號。

2.如果不確定型號，可以參考我們頁面上提供的詳細介紹或者直接咨詢我們。

3.網頁上的價格僅作參考，準確價格請電聯我司。

4.貨期方面請與我司，因為不同產品的貨期是不一樣的。

5.同一產品不同時間的價格與貨期也是不一樣的

6.其他的具體相關事宜，請。

7.謝謝您的光臨！

TOS1200泄漏電流測試儀日本菊水KIKUSUI

TOS1200泄漏電流測試儀(用于校準耐壓機電流)基本參數：

產地: 日本廠商: 日本菊水 KIKUSUI

Calibration of Leakage Current Detection Sensitivity

Direct Reading of Error from Error Display Scale

TOS1200泄漏電流測試儀Ammeter Ranges

Eliminates Need for Power Supply

AC/DC Selection Switch

Measuring Function	Measurement of current values and error (%) for AC (50/60 Hz) and DC at a test voltage of 1000 V
Measuring Ranges	8 ranges consisting of 0.5/1/2/5/10/20/50/100 mA along with values equal to 0.8 times the values of those ranges (for 1 2 4 and 8 steps)
Ammeter Scale	Main scale: Direct-reading errordisplay scale over a range of ±10%of the above full scale values Auxiliary scale: Ratio scale of 0 to1.1 times the above full scale valuesAccuracy: (equivalent to 0% display of mainscale when the ratio is equal to 1)
Ammeter Accuracy	Main scale: ±1% of reading Auxiliary scale: ±3% of full scale value
Ammeter Indication	DC/AC(sine wave rms value calibration of mean value response)

TOS1200泄漏電流測試儀日本菊水KIKUSUI

Load Resistance
Range[mA]	Resistance[k?]	Range[mA]	Resistance[k?]
0.5	2000	10	100
1	1000	20	50
2	500	50	20
5	200	100	10
Allowed Input Time		0.5/1/2/5 mA ranges: Continuous 10/20/50/100 mA ranges: 60 sec. Max. 1/3 of duty cycle
Dimensions (MAX)		134W × 164H × 270D mm (140W × 189H × 320D mm)
Weight		approx. 3.5 kg
Accessories		TL04-TOS high-voltage test lead: 1
